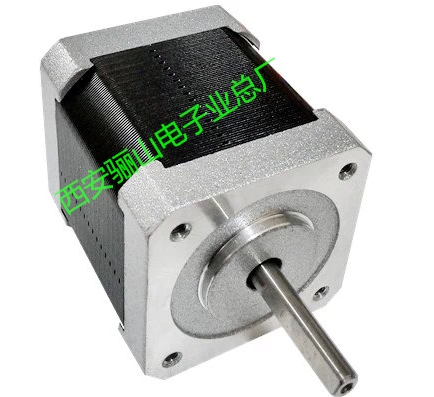

42BYG-0.9/1.8°永磁感應子式步進電機
一般規(guī)格
|
Item
|
Specifications
|
|
Step Angle
|
0.9/1.8°
|
|
Step Angle Accuracy
|
±5% (full step, no load)
|
|
Resistance Accuracy
|
±10%
|
|
Inductance Accuracy
|
±20%
|
|
Temperature Rise
|
80。C Max.(rated current)
|
|
Ambient Temperature
|
-20。C~+50。C
|
|
Insulation Resistance
|
100MΩMin. ,500VDC
|
|
Dielectric Strength
|
1800VAC , 1s , 3mA
|
|
Shaft Radial Play
|
0.02Max. (450 g-load)
|
|
Shaft Axial Play
|
0.08Max. (450 g-load)
|
|
Max. radial force
|
220N (20mm from the flange)
|
|
Max. axial force
|
60N
|
|
Insulation class
|
F
|
|
|
|
|
相數
|
電壓
|
電流
|
電阻
|
電感
|
靜轉矩
|
機身長
|
出軸長度
|
重量
|

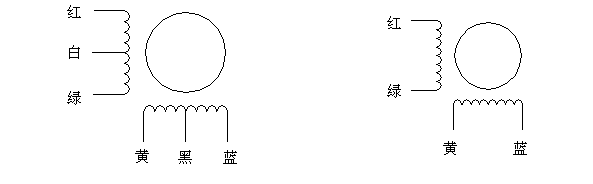

接線圖
|
|
|
V
|
A
|
Ω
|
mH
|
Kg.cm
|
mm
|
mm
|
Kg
|
|
|
42BYG002
|
4
|
12
|
0.16
|
75
|
60
|
1.0
|
33
|
18
|
0.2
|
a
|
|
42BYG004
|
2
|
4.2
|
0.6
|
7
|
6
|
1.4
|
33
|
18
|
0.2
|
b
|
|
42BYG007
|
4
|
6
|
0.5
|
12
|
7
|
0.8
|
33
|
18
|
0.2
|
a
|
|
42BYG007-01
|
4
|
6
|
0.28
|
21
|
10
|
1.0
|
33
|
24
|
0.2
|
a
|
|
42BYG008
|
4
|
6.5
|
0.38
|
17
|
17
|
1.2
|
33
|
18
|
0.2
|
a
|
|
42BYG010
|
4
|
2.4
|
1.2
|
2
|
1.3
|
1.0
|
33
|
18
|
0.2
|
a
|
|
42BYG015
|
4
|
12
|
0.3
|
40
|
19
|
1.3
|
33
|
18
|
0.2
|
a
|
|
42BYG016
|
4
|
12
|
0.3
|
40
|
26
|
1.3
|
33
|
24
|
0.2
|
a
|
|
42BYG017
|
2
|
6.3
|
0.42
|
15
|
16
|
1.4
|
33
|
30
|
0.2
|
b
|
|
42BYG020
|
4
|
12
|
0.6
|
20
|
14
|
1.7
|
33
|
18
|
0.2
|
a
|
|
42BYG101
|
2
|
12
|
0.5
|
24
|
27
|
1.7
|
33
|
18
|
0.2
|
b
|
|
42BYG102
|
2
|
12
|
0.35
|
34
|
35
|
1.7
|
33
|
18
|
0.2
|
b
|
|
42BYG103
|
2
|
12
|
0.4
|
30
|
36
|
2.0
|
33
|
18
|
0.2
|
b
|
|
42BYG104
|
2
|
12
|
0.6
|
20
|
28
|
2.0
|
33
|
18
|
0.2
|
b
|
|
42BYG131
|
4
|
5.4
|
0.1
|
54
|
25
|
0.5
|
33
|
18
|
0.2
|
a
|
|
42BYG006
|
2
|
16.8
|
0.28
|
60
|
130
|
2.4
|
39
|
24
|
0.24
|
|
|
42BYG009
|
4
|
3.6
|
1.2
|
3
|
3
|
2.5
|
39
|
24
|
0.24
|
a
|
|
42BYG001
|
4
|
12
|
0.38
|
32
|
23
|
2.0
|
39
|
24
|
0.24
|
a
|
|
42BYG201
|
4
|
12
|
0.6
|
20
|
16
|
2.0
|
39
|
24
|
0.24
|
a
|
|
42BYG202
|
2
|
12
|
0.4
|
30
|
70
|
2.4
|
39
|
24
|
0.24
|
b
|
|
42BYG203
|
2
|
12
|
0.3
|
40
|
80
|
2.4
|
39
|
24
|
0.24
|
b
|
|
42BYG204
|
4
|
6
|
0.75
|
7.9
|
|
2.0
|
39
|
24
|
0.24
|
a
|
|
42BYG206
|
4
|
9
|
0.15
|
56
|
|
0.7
|
39
|
24
|
0.24
|
a
|
|
42BYG207
|
2
|
3
|
1.2
|
2.5
|
4.7
|
2.6
|
39
|
24
|
0.24
|
b
|
|
42BYG208
|
2
|
2.8
|
0.6
|
4.6
|
6.3
|
2.0
|
39
|
24
|
0.24
|
b
|
|
42BYG301
|
2
|
12
|
0.27
|
44
|
100
|
2.5
|
42
|
24
|
0.3
|
b
|
|
42BYG302
|
2
|
7.6
|
0.8
|
9.5
|
19.5
|
3
|
42
|
24
|
0.3
|
b
|
|
42BYG401
|
4
|
12
|
0.6
|
20
|
16
|
2.8
|
47
|
24
|
0.5
|
a
|
